5 Ribs Acoustic Roof Panel

Rock Wool Insulated 5 Ribs Acoustic Roof Panel

  • 5 Ribs Acoustic Roof Panel
  • 5 Ribs Acoustic Roof Panel
  • 5 Ribs Acoustic Roof Panel

Please fill out information form for selecting proper Sandwich Panels for your project needs.

Product Features

  • 5 ribs profiled outer sheet
  • Outer sheet is prepainted galvanized steel, inner sheet is perforated prepainted galvanized steel
  • Production in various color options
  • Usage for sound insulation and acoustic improvement
  • Application on roofs with a slope higher than 5%
  • Fire performance according to TS EN 13501-1,A2-s1; d0 for Rock Wool insulated Acoustic Roof Panels
  • Production flexibility at any ordered length between 2 m - 10 m
  • Core thickness options 50-60-80-100-120-150 mm
  • According to TS EN 14509, U values range between 0,77 – 0,23 W/m2K depending on the panel thickness
  • Production at the factories in Mersin and Sakarya

Application Areas

  • Industrial Facilities
  • Commercial Buildings
  • Social Constructors
  • Power Plants


  • TSE EN ISO 9001: 2008

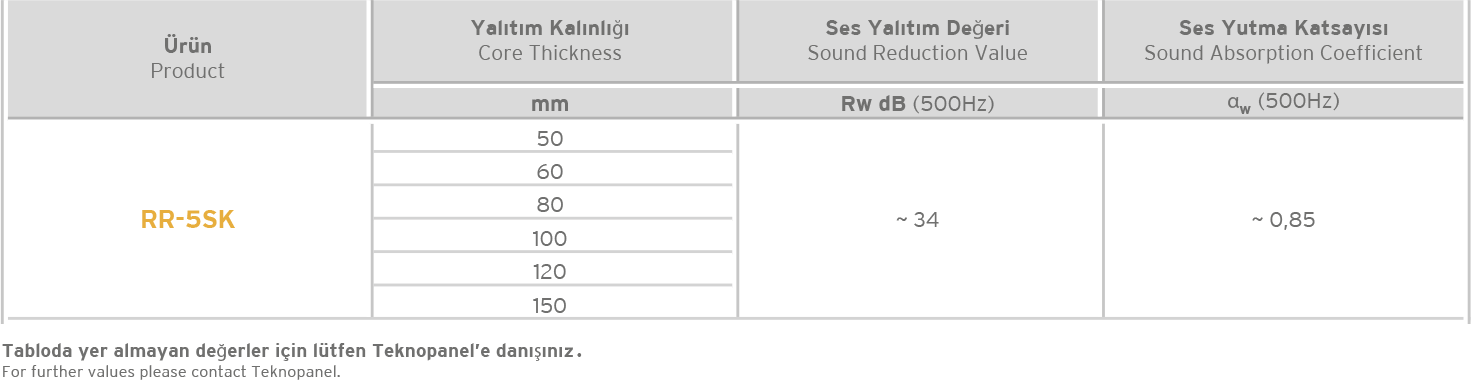

Physical Data

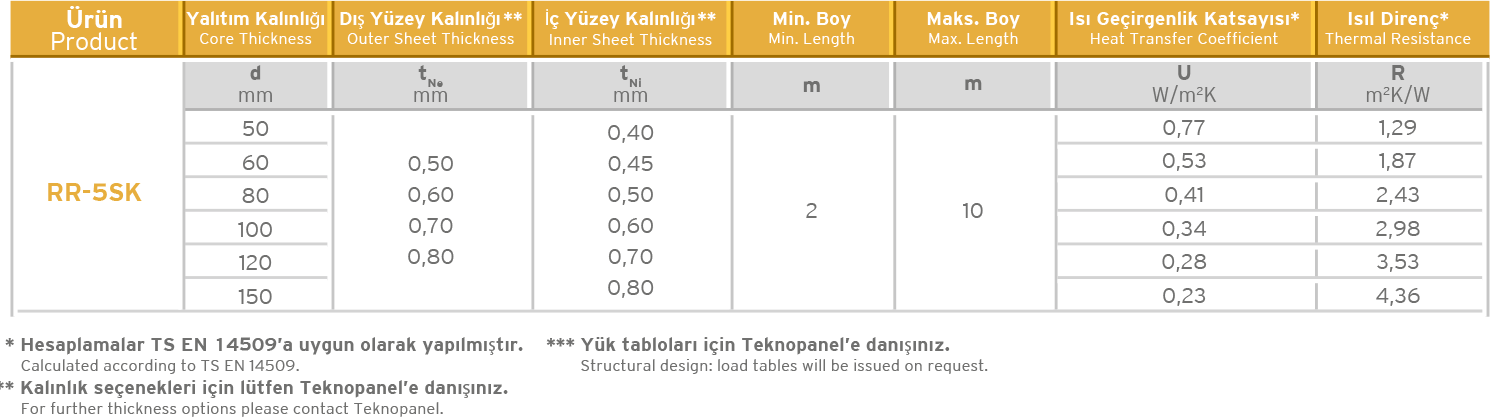

Performance Table
