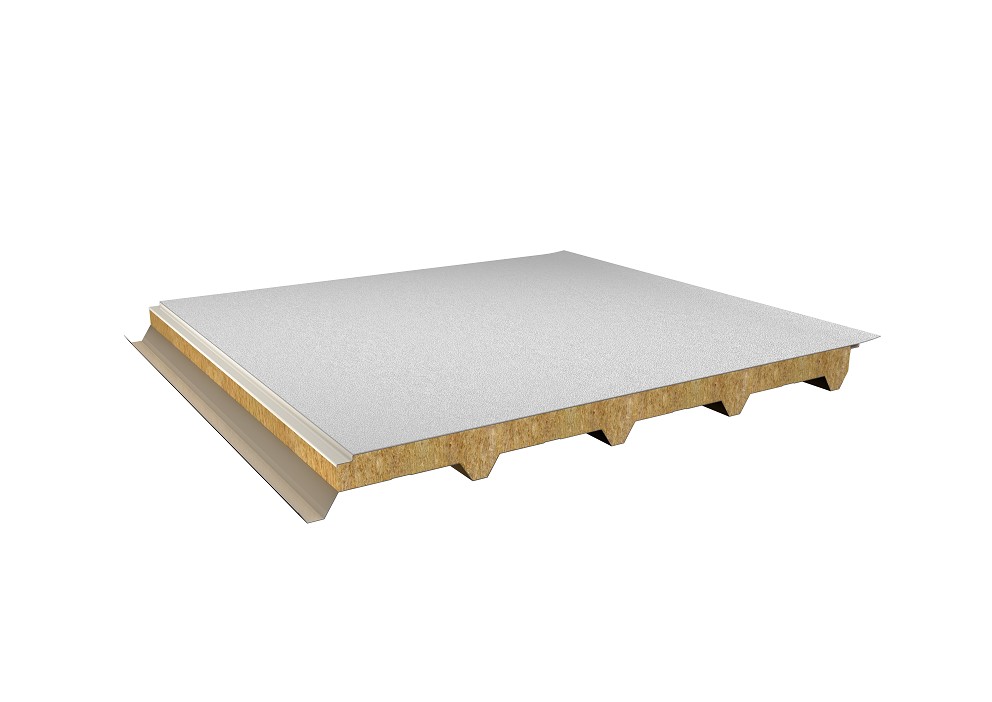

5 Ribs Membrane Roof Panel-Double Sheet

RP-5SM+ / RI-5SM+
PUR/PIR Insulated 5 Ribs Membrane Roof Panel-Double Sheet


  • 5 Ribs Membrane Roof Panel-Double Sheet
  • 5 Ribs Membrane Roof Panel-Double Sheet
  • 5 Ribs Membrane Roof Panel-Double Sheet

Please fill out information form for selecting proper Sandwich Panels for your project needs.

Product Features

  • 5 ribs profiled inner sheet
  • Inner sheet is prepainted galvanized steel, outer sheet is galvanized sheet coated with PVC
  • Production in various color options
  • Application of flat roofs and roofs with a slope lower than 5%
  • Production flexibility at any ordered length between 2 m - 12 m
  • Core thickness options 40-50-60-70-75-80-100-120-150-180-200* mm
  • PVC Membrane thickness options 1,20-1,50-1,80-2,00 mm
  • According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness
  • Mineral Wool insulation alternative besides PUR and PIR insulation
  • Production at the factories in Izmir, Mersin and Sakarya*

Application Areas

  • Industrial Facilities
  • Commercial Buildings
  • Social Constructors

Certificates

  • TSE EN ISO 9001: 2008
  • FM Approved
  • G Belgesi
  • TS ISO/IEC 27001
  • GOST - R

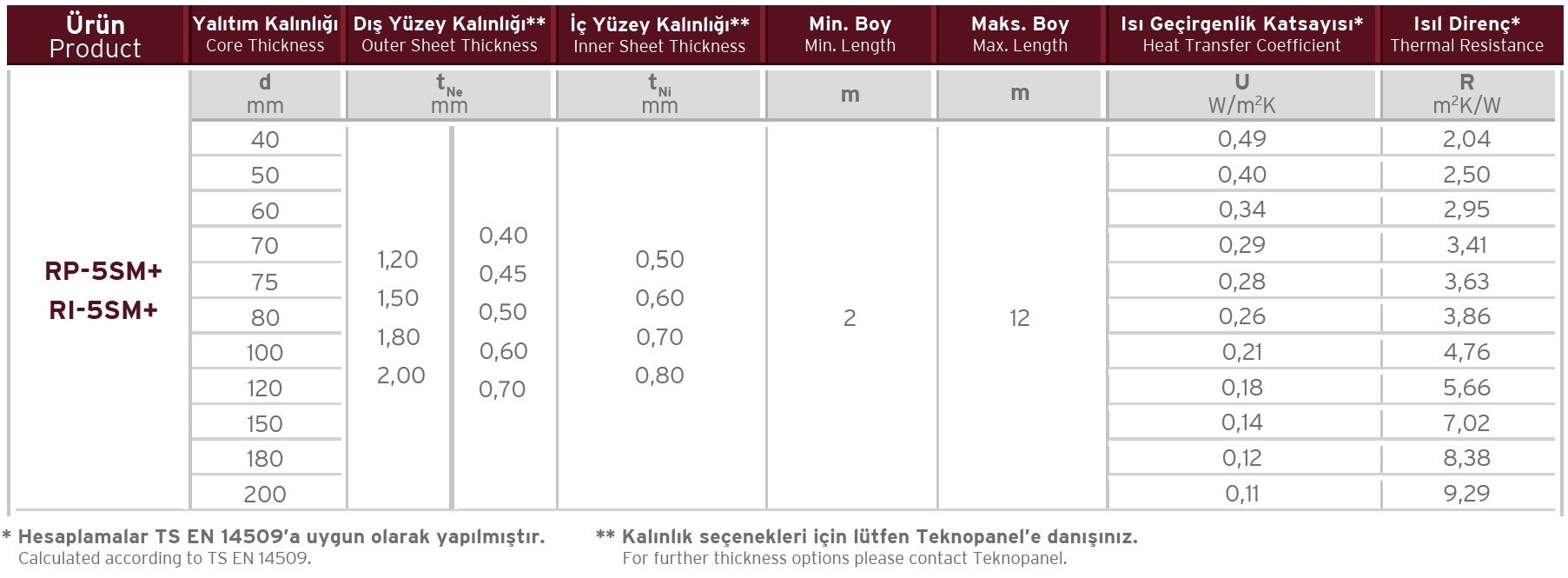

Physical Data
