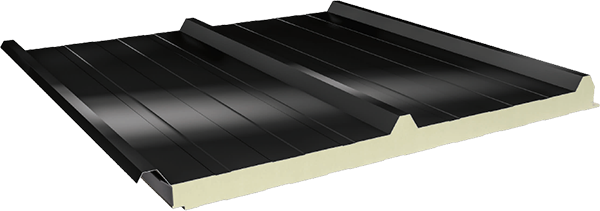

3 Ribs Roof Panel

RP-3S / RI-3S
PUR/PIR Insulated 3 Ribs Roof Panel

  • 3 Ribs Roof Panel
  • 3 Ribs Roof Panel
  • 3 Ribs Roof Panel

Please fill out information form for selecting proper Sandwich Panels for your project needs.

Product Features

  • 3 ribs profiled outer sheet
  • Prepainted galvanized steel or aluminum inner and outer sheet alternatives
  • Production in various color options
  • Application on roofs with a slope higher than 5%
  • Fire performance according to TS EN 13501-1B-s2; d0 for PUR insulated roof panels,B-s1; d0 for PIR insulated roof panels
  • Production flexibility at any ordered length between 2 m - 15 m
  • Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm
  • According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness
  • EPS insulation alternative besides PUR and PIR insulation
  • ISO, TSE, CE quality certificates
  • Production at the factories in Mersin and Sakarya

Application Areas

  • Industrial Facilities
  • Commercial Buildings
  • Social Constructors
  • Agriculture and Animal Husbandry
  • Power Plants

Certificates

  • CE document
  • TSE
  • TSE EN ISO 9001: 2008

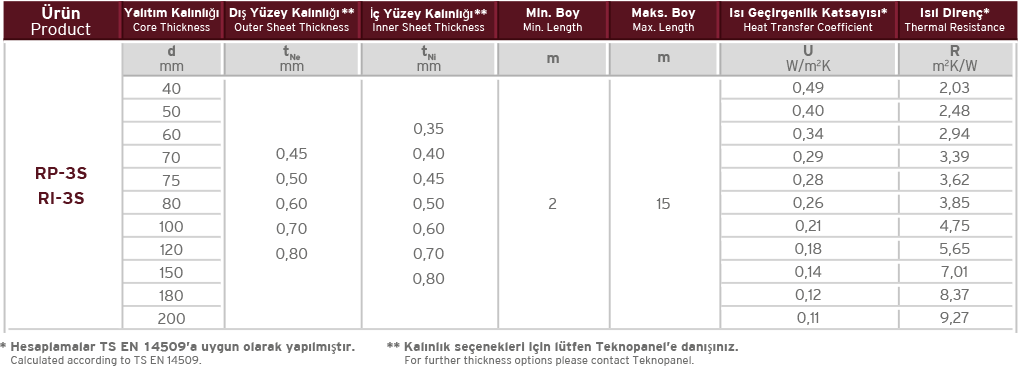

Physical Data

3 Ribs Roof Panel Physical Data

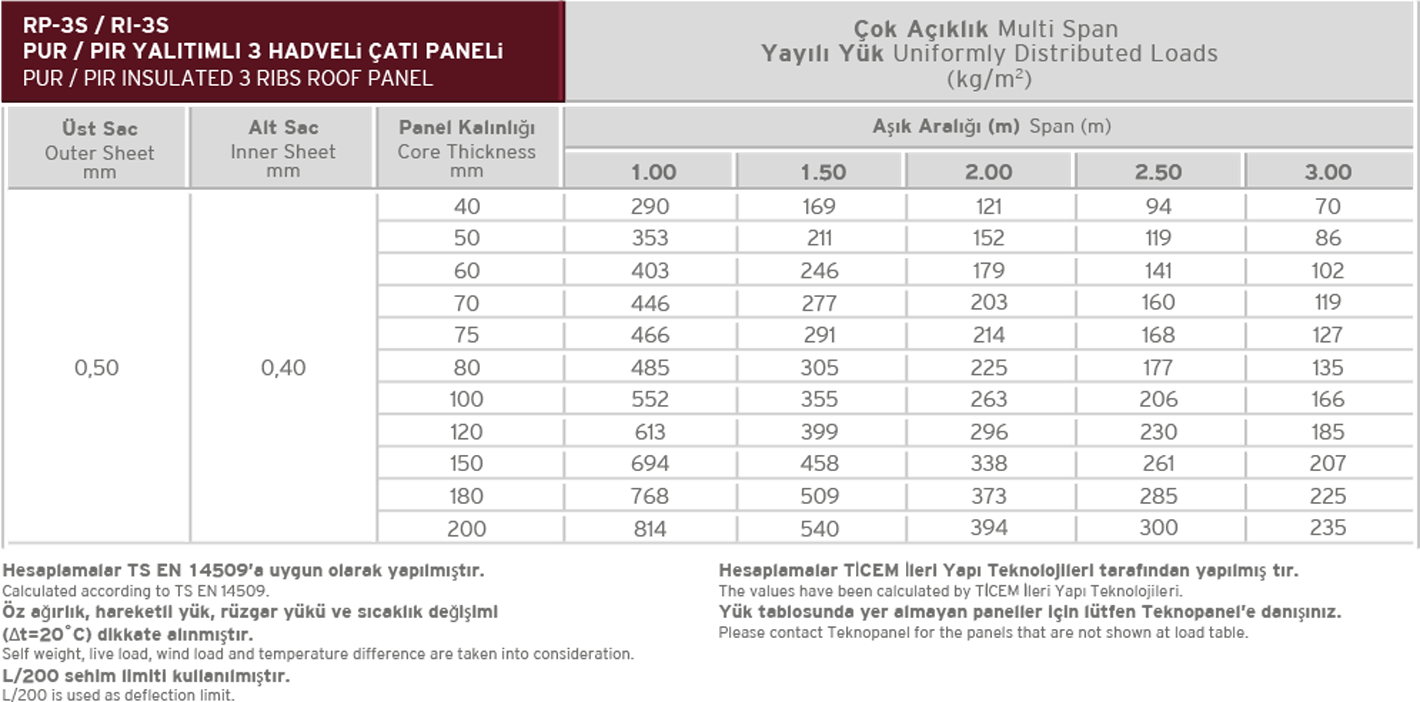

Load Table

3 Ribs Roof Panel Load Table
