5 Ribs Membrane Roof Panel-Single Sheet

RR-5SM
Rock Wool Insulated 5 Ribs Membrane Roof Panel-Single Sheet

  • 5 Ribs Membrane Roof Panel-Single Sheet
  • 5 Ribs Membrane Roof Panel-Single Sheet
  • 5 Ribs Membrane Roof Panel-Single Sheet

Please fill out information form for selecting proper Sandwich Panels for your project needs.

Product Features

  • 5 ribs profiled inner sheet
  • Inner sheet is prepainted galvanized steel, outer sheet is PVC Membrane
  • Production in various color options
  • Usage in buildings that require fire safety
  • Application of terrace roofs and roofs with a slope lower than 5%
  • Fire performance according to TS EN 13501-1,B-s1; d0 for Rock Wool insulated roof panels
  • Production flexibility at any ordered length between 2 m - 12 m
  • Core thickness options 50-60-80-100-120-150 mm
  • PVC membrane thickness options 1,20 mm and 1,50 mm
  • According to TS EN 14509, U values range between 0,62 – 0,23 W/m2K depending on the panel thickness
  • PUR and PIR insulation alternatives besides Rock Wool insulation
  • Production at the factories in Mersin and Sakarya

Application Areas

  • Industrial Facilities
  • Commercial Buildings
  • Social Constructors

Certificate

  • TSE EN ISO 9001: 2008

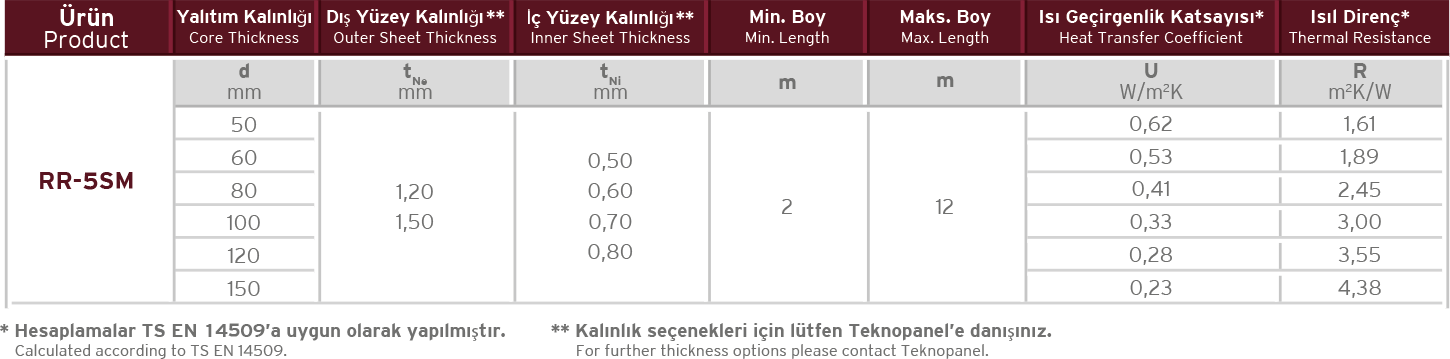

Physical Data

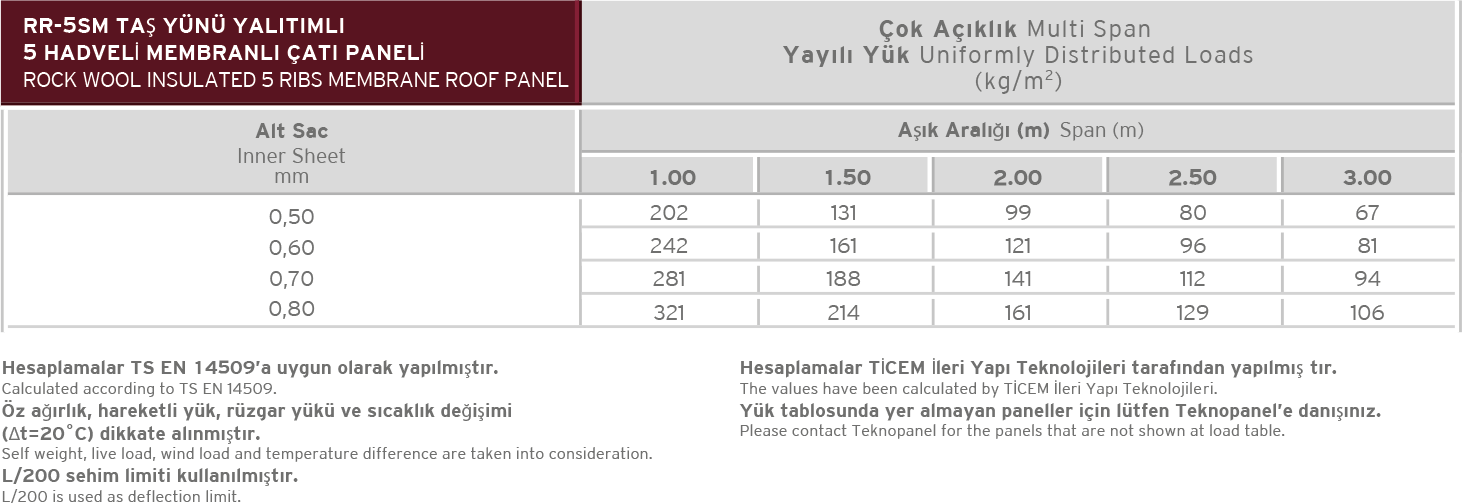

Data Table
